• Wheels: 16" x 6" White Painted Steel
• Tires: LT225/75R16E BSW A/S -inc: Hankook DynaPro HT
• Black Front Bumper w/Black Rub Strip/Fascia Accent
• Black Side Windows Trim and Black Front Windshield Trim
• Black Door Handles
• Light Tinted Glass
• Variable Intermittent Wipers
• Front Windshield -inc: Sun Visor Strip
• Fully Galvanized Steel Panels
• Black Grille
• Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps

• Radio: AM/FM Stereo w/Clock Display & 2 Speakers -inc: Bluetooth® capability and USB input
• Radio w/Clock
• 2 Speakers
• Fixed Antenna
• Wireless Phone Connectivity

• Dual High Back Buckets
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Manual Tilt/Telescoping Steering Column
• Front Cupholder
• Manual Air Conditioning
• Glove Box
• Front Vinyl Headliner
• Urethane Gear Shifter Material
• Vinyl Bucket Seats
• Partial Floor Console w/Storage and 2 12V DC Power Outlets
• Front Black Vinyl Floor Covering
• Tracker System
• Driver And Passenger Door Bins and 1st Row Underseat Storage
• Manual 1st Row Windows
• Driver Information Center
• Analog Appearance
• Fixed Front Head Restraints
• Driver And Front Passenger Armrests
• 2 12V DC Power Outlets

• Electronic Stability Control (ESC)
• ABS And Driveline Traction Control
• Side Impact Beams
• Collision Mitigation-Front
• Low Tire Pressure Warning
• Dual Stage Driver And Passenger Front Airbags
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners

782A

High-Series Exterior Upgrade Package

• GVWR: 14,500 Lb Payload Package
• High Series Exterior Upgrade Package
• Order Code 782A
• 2 Speakers
• AM/FM radio
• Radio: AM/FM Stereo with Clock Display and 2 Speakers
• Air Conditioning
• Power Equipment Group
• Power steering
• Remote Keyless Entry
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Rear anti-roll bar
• Electronic Stability Control
• Fully automatic headlights
• SecuriLock Passive Anti-Theft System (EPATS)
• Cruise Control
• Dual rear wheels
• 5000 lbs. Maximum Front GAWR
• Chrome Grille
• Front Chrome Bumper
• License Plate Bracket
• 110V Power Inverter
• Driver door bin
• Embedded Modem Delete
• Front Black Vinyl Floor Covering
• Passenger seat mounted armrest
• Telescoping steering wheel
• Tilt steering wheel
• Voltmeter
• Cloth Bucket Seats
• Driver's Seat Mounted Armrest
• Dual High Back Buckets
• Front Bucket Seats
• Vinyl Bucket Seats
• Auxiliary Fuel Port
• Passenger door bin
• Manual Telescoping Trailer Tow Mirrors
• 16" x 6" White Painted Steel Wheels
• Variably intermittent wipers
• 4.56 Axle Ratio
• ROCKPORT: 17'L x 96"W x 84"H ALUMINUM SHEET & POST FEATURES: .040 ALUMINUM SIDEWALL - WHITE, BULKHEAD SLIDING DOOR ON CAB SIDE W/ 6" SET BACK WALL FOR FULL SEAT TRAVEL, TRUE NOMINAL BODY LENGTH BEHIND SET BACK WALL, 5" TUBE SHAPE LONG SILLS, 3" CROSSMEMBERS 16" OC, ALUMINUM FRONT RADIUS, ALUMINUM VERTICAL CORNERS, 1 1/8" LAMINATED HARDWOOD FLOOR, REAR MUD FLAPS, Z-SHAPED GALVANIZED SIDE POSTS 16" OC, COATED REAR STRUCTURE WITH FLUSH REAR SILL, LED REAR LIGHTS IN SIDE POSTS (2) LED CARGO LIGHT W/ 3-WAY LIGHTED CAB SWITCH, 12" STEEL POOCHED REAR STEP BUMPER, .032 ALUMINUM ROOF, ROOF BOWS 24" OC, FULL HEIGHT 3/8" PLYWOOD LINER, COMPOSITE REAR ROLL UP DOOR W/ INSIDE RELEASE, LED CLEARANCE LIGHTS, (12) TIE RINGS, (2) GRAB HANDLES, UNDERCOATING

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 210
• Weight Information
• Base Curb Weight (lbs): 5435
• Base Curb Weight (lbs): 5438
• Base Curb Weight (lbs): 5431
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 3048
• Curb Weight - Rear (lbs): 2383
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 22000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Maximum Trailering Capacity (lbs): 7500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5000
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: T68
• Rear Tire Order Code: T68
• Front Tire Size: LT225/75SR16
• Rear Tire Size: LT225/75SR16
• Front Tire Capacity (lbs): 5000
• Rear Tire Capacity (lbs): 9880
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Wheels
• Front Wheel Size (in): 16 X 6
• Rear Wheel Size (in): 16 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 54.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 55
• Exterior Dimensions
• Wheelbase (in): 158
• Length, Overall (in): 261.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 80
• Overhang, Rear w/o bumper (in): 68.5
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.5
• Ground to Top of Load Floor (in): 26
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Summary

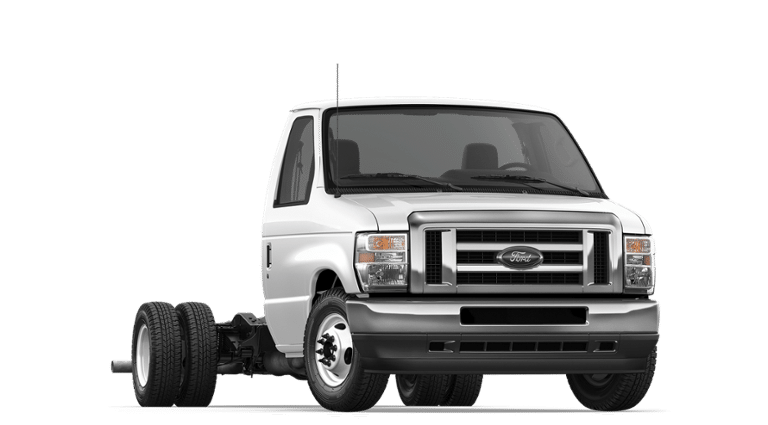

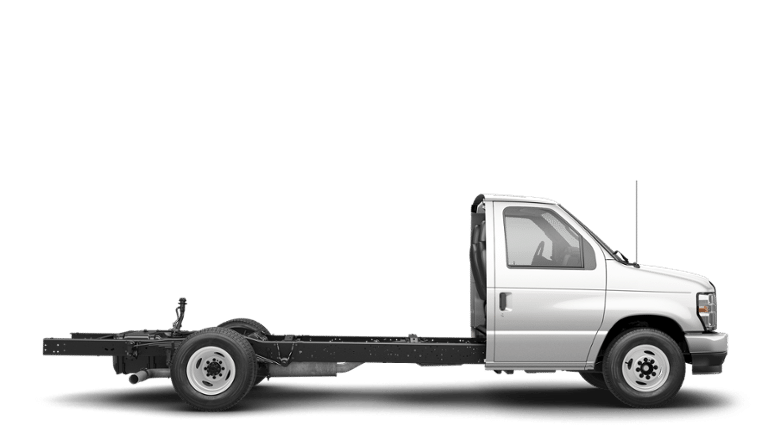

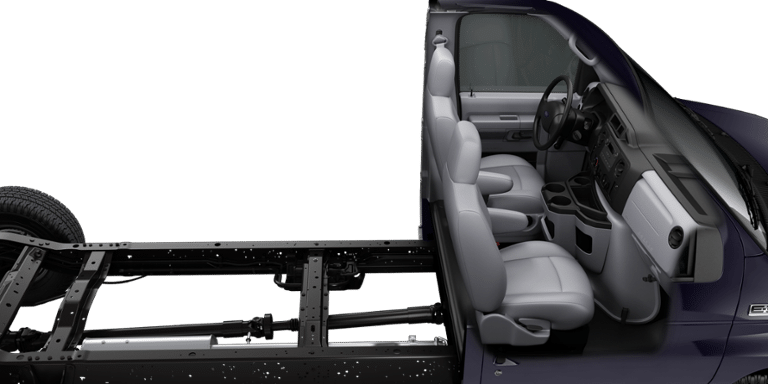

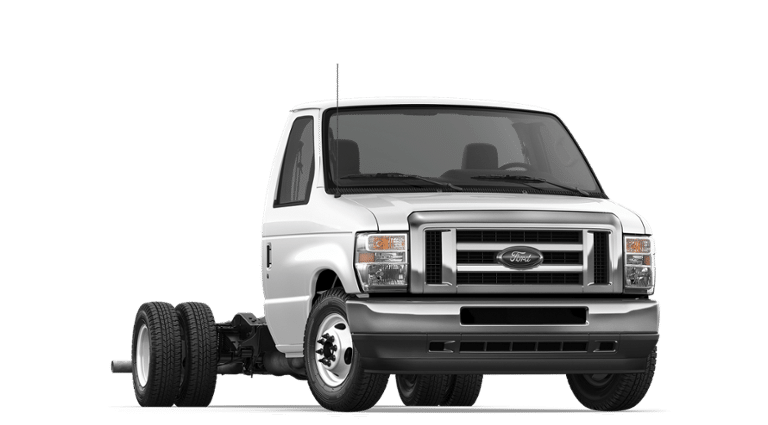

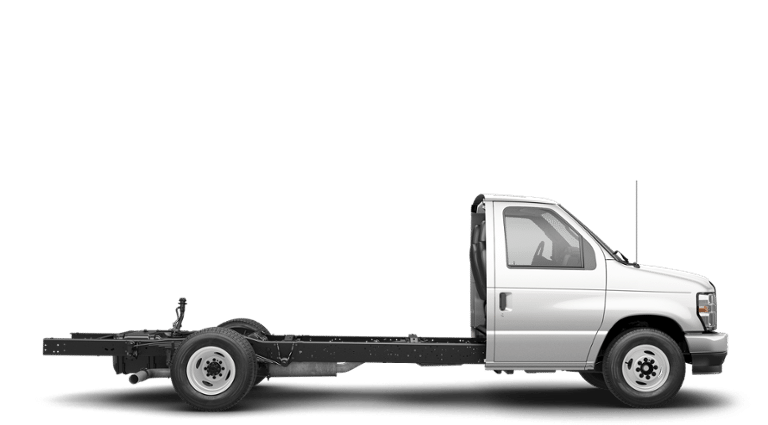

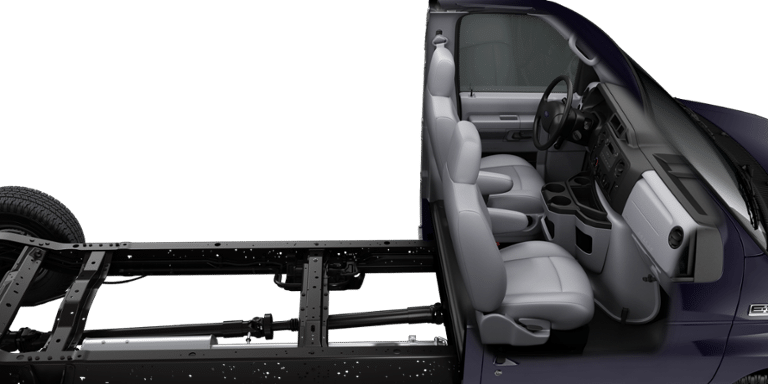

• Vehicle Name: Ford E-Series Cutaway
• Body Style: Chassis
• Body Code: H
